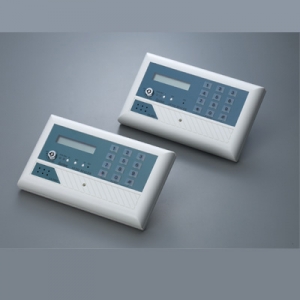

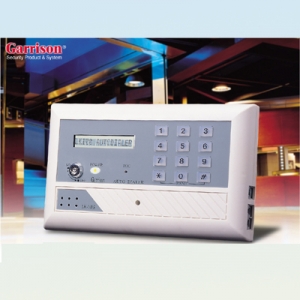

Auto Dialer, 2 Triggers, 2 Voice messages Auto Dialer, 2 Triggers, 2 Voice messages
Item No:LK-100S2

Auto Dialer, 2 Triggers, 2 Voice messages

File download

Item No. LK-100S2

• Two Triggers, Two Voice messages
• Dual alarm inputs, each triggers auto-dialing of all 8 phone numbers
• Battery free computerized chip records voice message(s), each 20 seconds maximum, and phone numbers each 25 digits maximum.
• With Panic Button for emergency help
• Intrusions recorded and reported on LCD
• With alarm output dry contact


Specifications:

Power Input: DC11 ~ 17V
- Power consumption: Standby - 45mA, Operation - 100mA
- Alarm Inputs: NO (Normal Open) or NC (Normal Close)
- Number of Phone Number: 8 (landlines or cellphones)
- Time of Voice Message(s): 20 seconds maximum
- dual alarm input, dual voice messages
- Alarm Output Method: dry contacts
- Dimensions: 210W x 125H x 34D mm



The Auto Dialer with 2 Triggers and 2 Voice Messages is an advanced device designed to provide robust security and reliable communication capabilities. With its dual triggers and dual voice message functionality, this Auto Dialer offers enhanced features for comprehensive protection and efficient response.

Equipped with two triggers, this Auto Dialer enables automatic dialing of all 8 programmed phone numbers in response to alarm events. Whether triggered by NO (Normal Open) or NC (Normal Close) alarm inputs, the Auto Dialer ensures that timely notifications are sent to designated contacts, enhancing the speed and effectiveness of incident response.

The device also features an alarm output dry contact, allowing for seamless integration with external alarm systems or devices. This capability enhances the overall security infrastructure and enables comprehensive coverage and response.

In terms of specifications, the Auto Dialer operates with a power input range of DC11 ~ 17V. During standby mode, it consumes only 45mA, while operation requires 100mA, ensuring efficient power usage and longevity.

With dimensions of 210mm in width, 125mm in height, and 34mm in depth, the Auto Dialer is compact and can be easily integrated into existing security setups. Its user-friendly design and intuitive interface facilitate seamless installation and operation.
