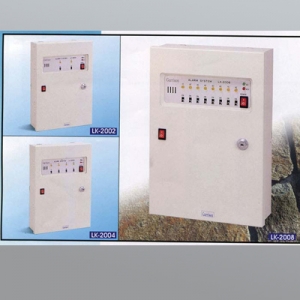

Item No. LK-2002 / LK-2004 / LK-2008

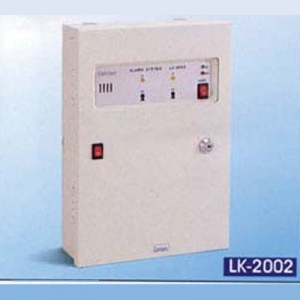

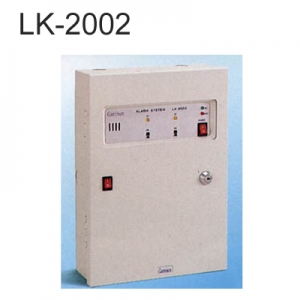

• LK-2002 : Two burglary zones

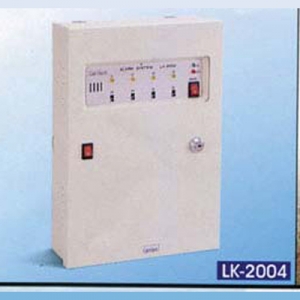

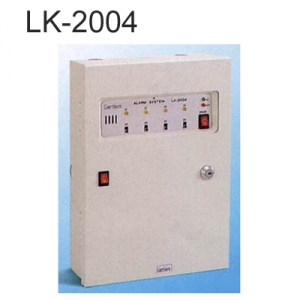

• LK-2004 : Four burglary zones

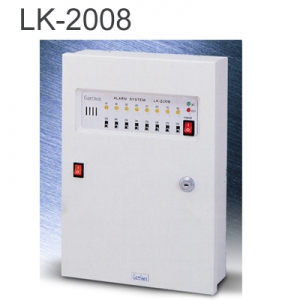

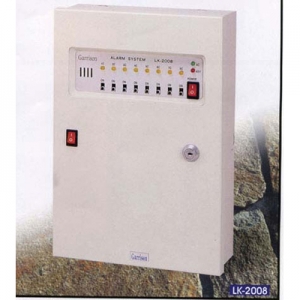

• LK-2008 : Eight burglary zones
• For commercial and residential security system
• Microprocessor controlled
• Each burglary zone supervised with end-of-line resistors and fast-response time
• Built-in transformer 18VA and sounder
Protection zones: one 24 hours emergency zone (N.O loop)
- 2 burglary zone (N.C. loop) - - LK-2002
- 4 burglary zones (N.C. loop) - - LK-2004
- 8 burglary zones (N.C. loop) - - LK-2008
- Each burglary zone supervised with end-of-line resistors and fast-response time
- Individual By-Pass switches and zone status LED indicators
- Alarm memory for each zone, Battery recharge circuit, and optional remote control
- System output:
- . one timing / latching relay (dry contact)
- . one timing alarm output 12VDC/1.0A
- . one ARM LED terminal output 12VDC/100max
- . one Auxiliary power output 12VDC/0.5A
- Dimensions : 225W x 320L x 82D mm
The alarm control panels are designed with various burglary zones to accommodate the specific needs of different applications. The LK-2002 model offers two burglary zones, while the LK-2004 and LK-2008 models provide four and eight burglary zones, respectively. Each burglary zone is supervised with end-of-line resistors, ensuring reliable detection and fast response times.
The control panels feature individual By-Pass switches and zone status LED indicators, allowing users to easily enable or disable specific zones based on their requirements. This flexibility allows for customized security configurations and simplifies system management.
With built-in transformer 18VA and sounder, the alarm control panels offer a comprehensive solution for security systems. The sounder provides audible alerts in the event of an intrusion or other security breaches, alerting occupants and deterring potential intruders.
The alarm control panels also offer advanced features such as alarm memory for each zone, a battery recharge circuit, and optional remote control capabilities. These features enhance the functionality and convenience of the security system, allowing users to monitor and control the system with ease.
